Speed Barrier gates
• SUS304 Stainless Steel • Semi or Fully Automatic • IPX4 Protection | |
SG 8021 |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
SG 8050 |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
SG 8080 |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
SG 8800 |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
Introduction

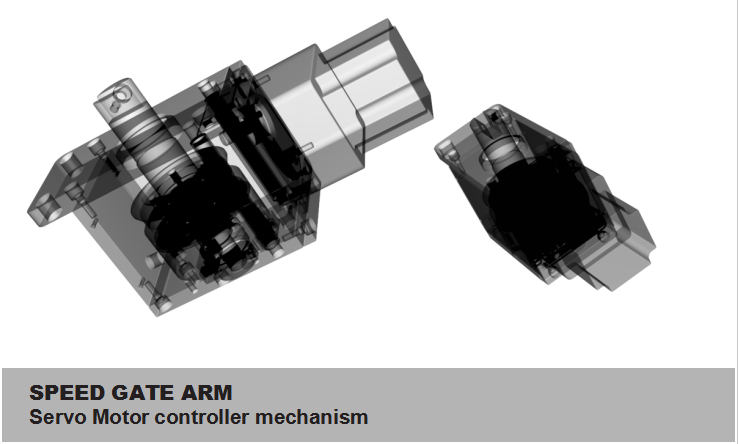

For precise control of the gates and utmost durability, we have option to choose Germany-made servo motor. The speed gate barrier is Structurally fabricated using SUS304 1.0-1.5mm stainless steel or SUS316L. Can be integrated with access control of any kind.
State of the art series. Highest quality. Aesthetically pleasing. Smooth operation.
Automatic Operation
Pass through time-out of 10s after card authentication.
In the event of a power failure or emergency, the flaps can set to be always open for unhindered passage.
Regain power: Automatic return to operational mode.
The controller mode: fully-automated with access control or fully-automated with sensor.
Custom Options
- Appearance: customized based on individual’s requirements.
- Stainless steel cabinet thickness ranging from 1.0-1.5mm.
- Cabinet material is upgradeable to SUS316 stainless steel material.
Standard Functionality
- Alarm Function.
- Passage width 600mm - 900mm for handicapped access.
- LED directional arrow indication. Card reading memory function.
- External long-range
- Optional face recognition & fingerprint.
- 1, 2 or 5 years warranty.

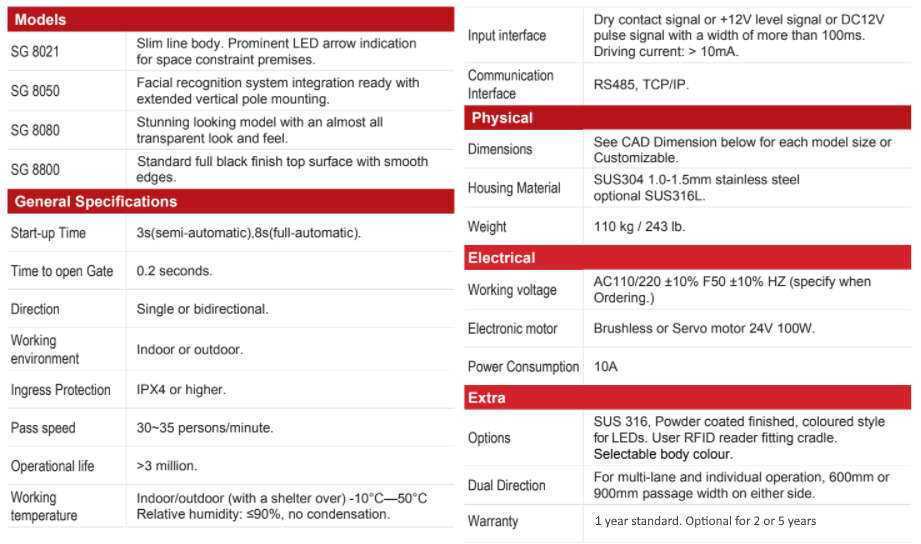

Technical Specifications
