Flap Barrier gates
• SUS304 Stainless Steel • Semi or Fully Automatic • IPX4 Protection | |
FB 2018 |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
FB 2019 |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
FB 2100 |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
FB 2111 |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements | |
 FB 2219 | Dimensions shown are indicative and for illustration purposes. Please refer to manufacturer for exact measurements |
Introduction

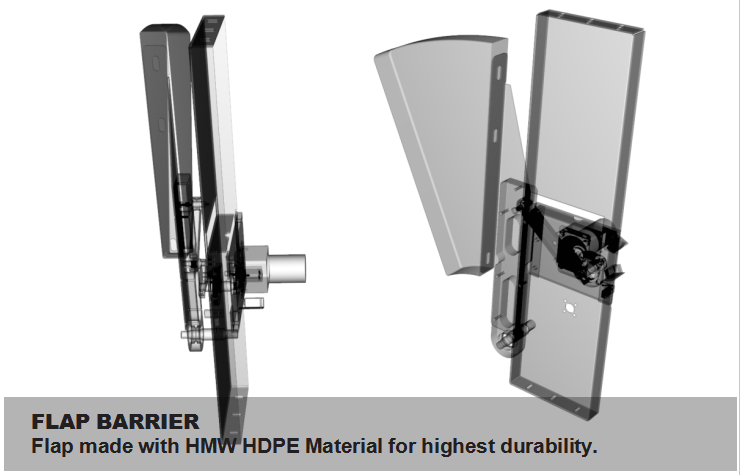

The flap turnstile is made using SUS304 1.0-1.5mm stainless steel. Thus, it is rustproof and durable. Flap barrier advantage: Core uses all self-independent high precision gear parts, replacing traditional Fan belt transmission structure, thus, more durable in use and excellent in stability of these barrier gates.
Automatic Operation
Pass through time-out of 10s after card authentication.
In the event of a power failure or emergency, the flaps can set to be always open for unhindered passage.
Regain power: Automatic return to operational mode.
Working Operation
- Basic operation or Advanced operation.
- Basic: allow any user access with automatic opening.
- Advanced: access control via RFID card, face I.D or fingerprints etc.
Custom Options
- Appearance: customized based on individual’s requirements.
- Stainless steel cabinet thickness ranging from 1.0-1.5mm.
- Cabinet material is upgradeable to SUS316 stainless steel material.
Standard Functionality
- Alarm function.
- Passage width 600mm - 900mm for handicapped access.
- LED directional arrow indication Card reading memory function.
- External long-range
- Optional face recognition & fingerprint.
- 1, 2 or 5 years warranty.

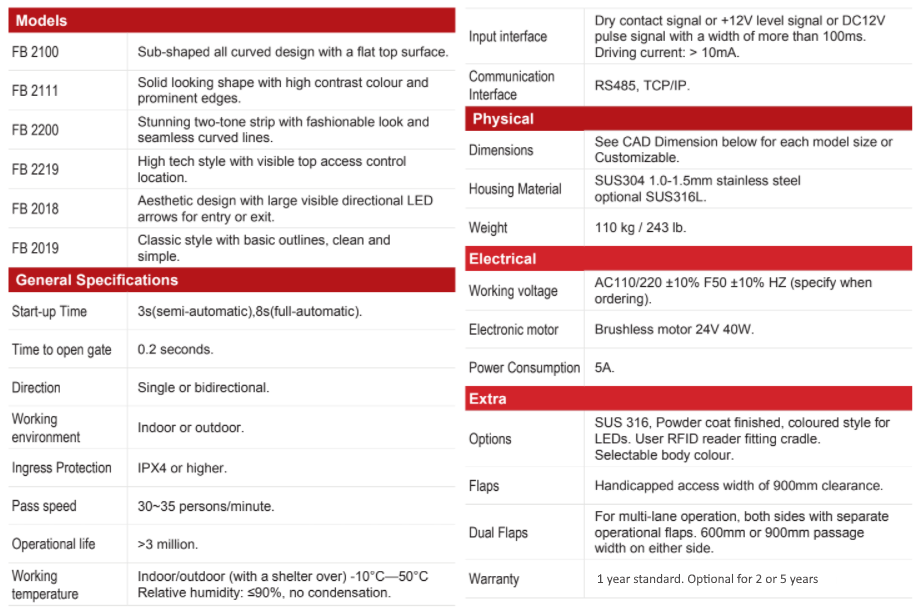

Technical Specifications
Other Products
Years of manufacturing experience, strictest quality control for international standard, design, customization, integration of Access Control & Security Systems
